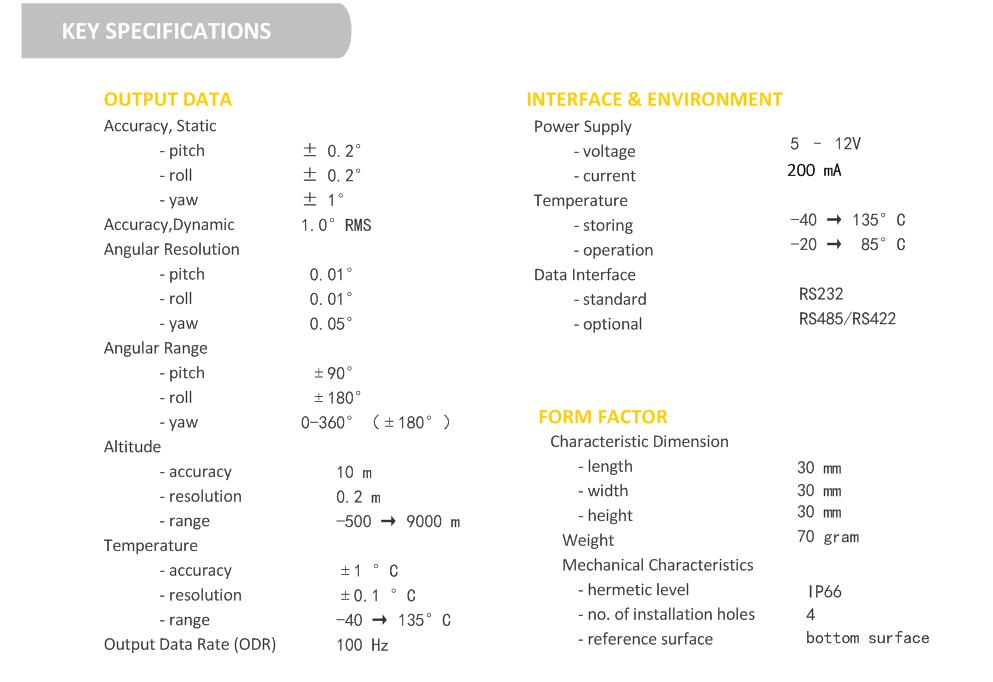

  • Specifications
  • Documentation
  • Evaluation Kit

DynaCube™ DC50S is a “high-end tactical grade” inertia system.  It has an extremely small form factor and weight and features a built-in anti-vibration mechanism which help eliminate much low frequency noise due to user environment. The system is able to output attitude of its carrier body continuously and dynamically.  Plus it sends out auxiliary signals including acceleration, angular rate, geomagnetic field, temperature and barometric information.

DynaCube™ DC50S employs the most accurate MEMS inertial sensors commercially available.  Particularly for the gyroscope and accelerometer, the performance level has reached the highest limit within the MEMS sensor domain, and it can be classified as “tactical grade”, a term which traditionally only applies to high end, very costly inertial sensors based on optical technology.

DynaCube™ DC50S series products are furnished with a standard RS-232 cable for data collection, "Plug & Play" and ready to go.  A metal shell provides users with 4 alignment holes for installation and for electrically grounding.

DynaCube™ Mini-AHRS enjoys a wide spectrum of applications, particularly most suitable for UAVs.





Technical Documentations

  DC50S Prodct Data Sheet

Senlution offers a complete evaluation kit for DynaCube called MCES (MotionCore Evaluation Suite).

A set of MCES (MotionCore Evaluation Suite) includes:

One cable, from JONHON 9Pin Connector to RS232, by which the user can directly connect DynaCube to a computer (external power is needed for all models);

One CD-ROM, with Senlution NAV Manager, a Microsoft Windows based PC software which displays, analyzes and log all data;

One user manual

With MCES, developer for DynaCube is able to quickly grasp all aspects of its performance, which will assist developer to explore the possibilities of incorporating DynaCube in the user's main system.
